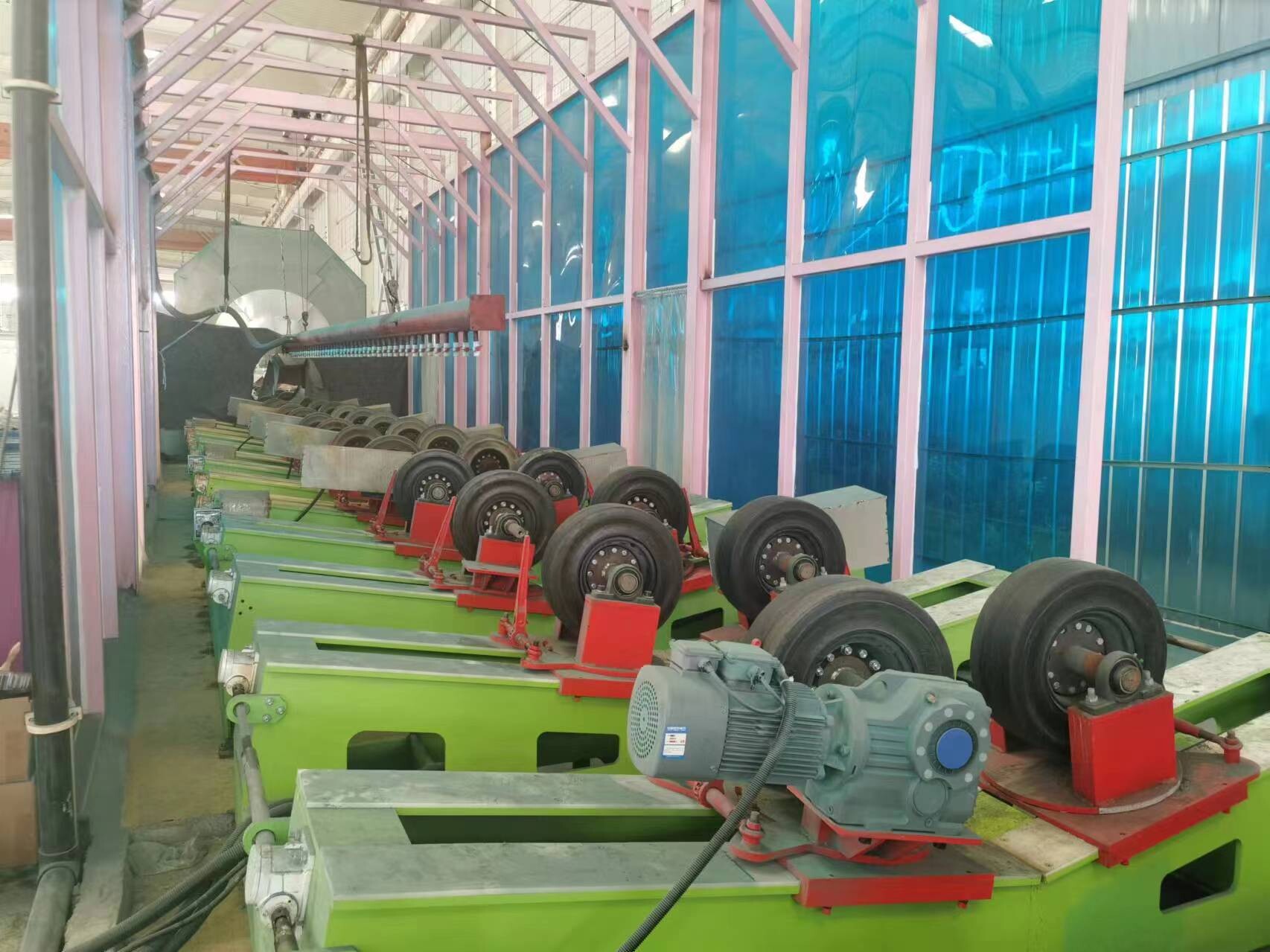

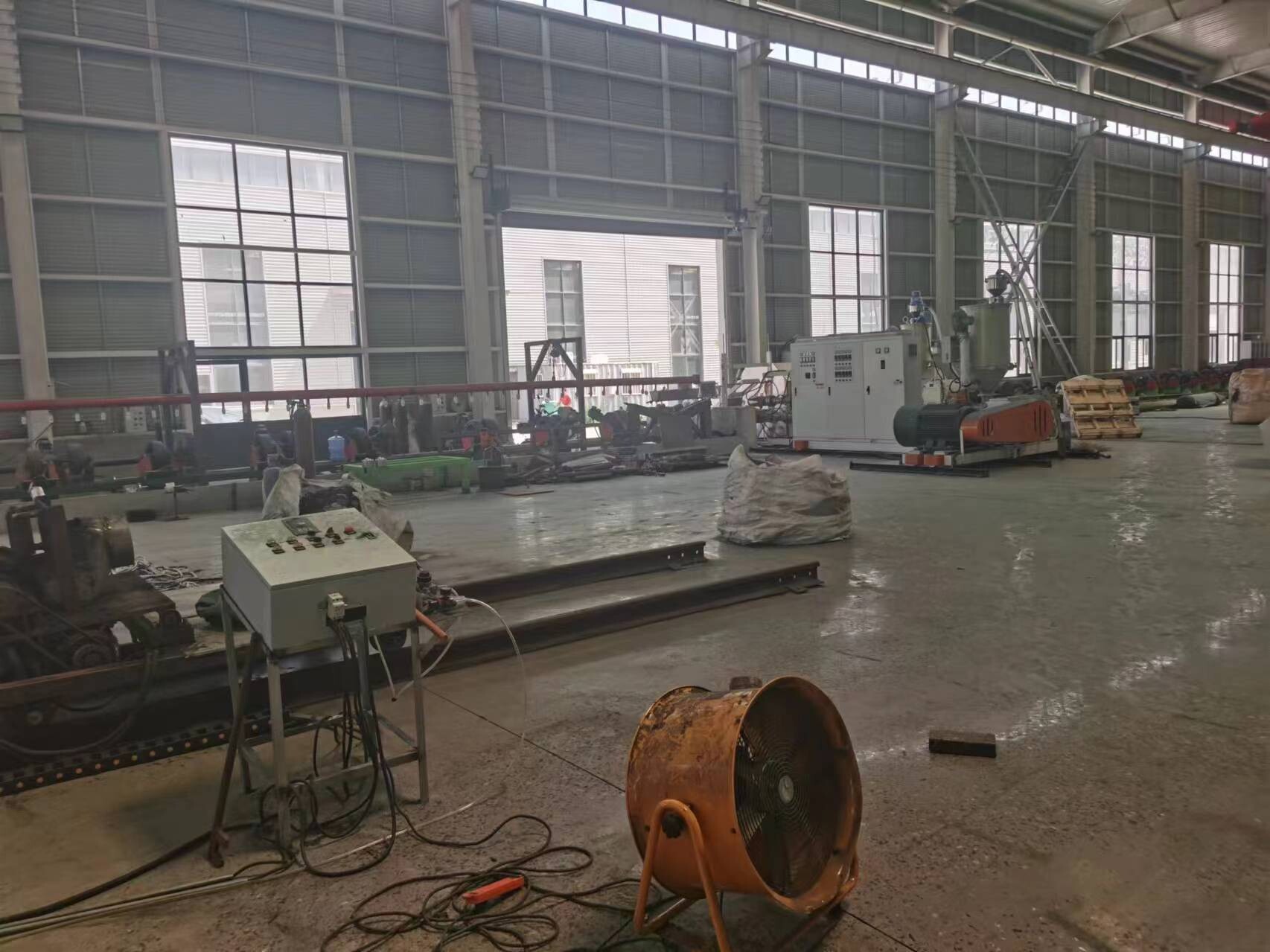

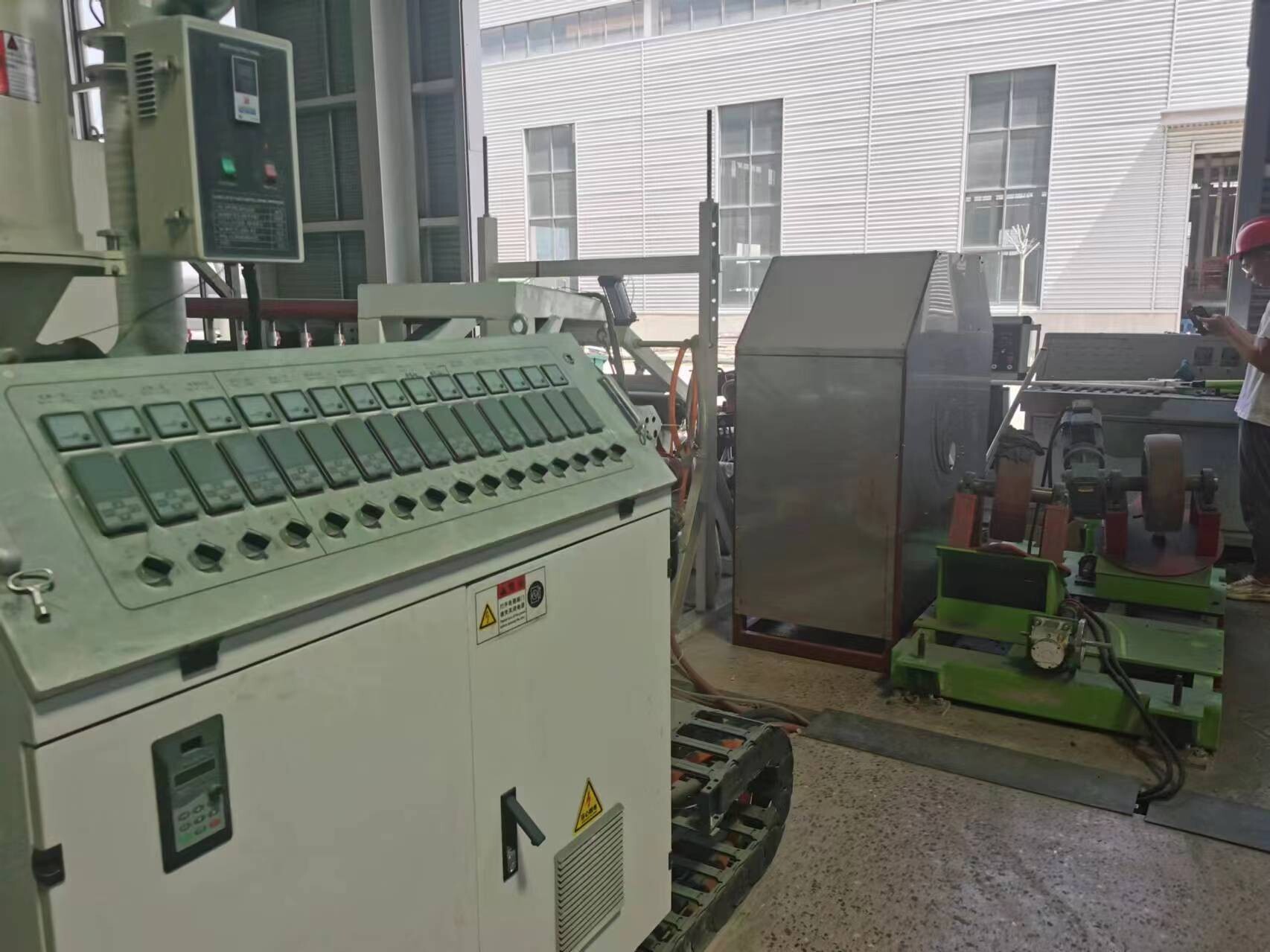

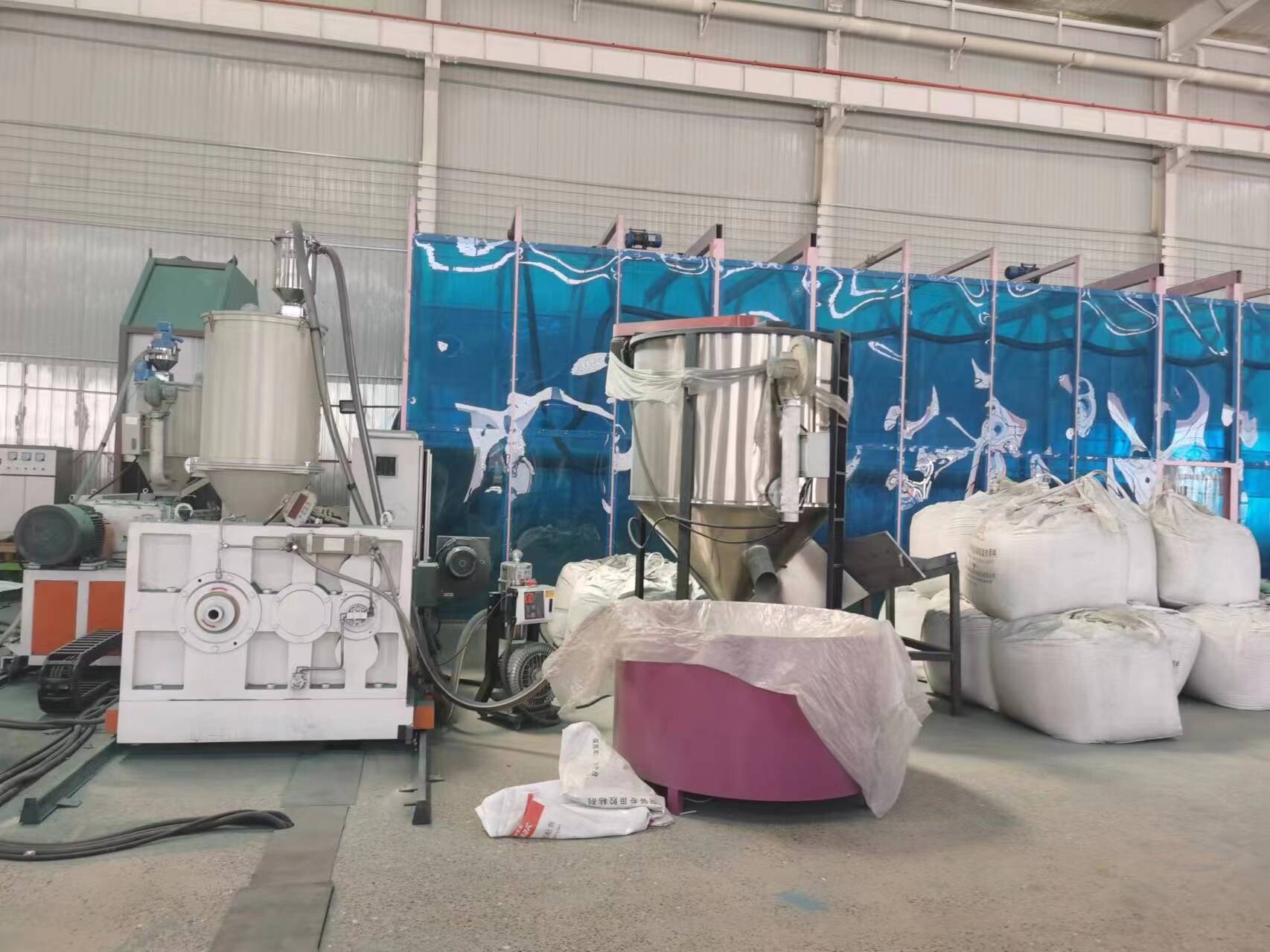

Before anti-corrosion treatment of the base material of 3PE anti-corrosion steel pipes, the steel pipes entering the pipe inlet platform need to be inspected and recorded, and the outer surface of the steel pipes needs to be shot blasted to remove rust. Then it should check the cleanliness and texture depth of the outer surface of the steel pipe to see if it meets the requirements. If it does not meet the requirements, grind it with a hand grinding wheel and repair it. Tape paper is wrapped around the end of the pipe, treated with fine dust, heated to the required temperature by medium frequency, and sprayed with epoxy powder, the adhesive extruder is wound, the side of the PE extruder is burned, the anti-corrosion pipes are water-cooled, qualified products are spray-marked, and the tubes are placed on the platform and stacked for shipment.

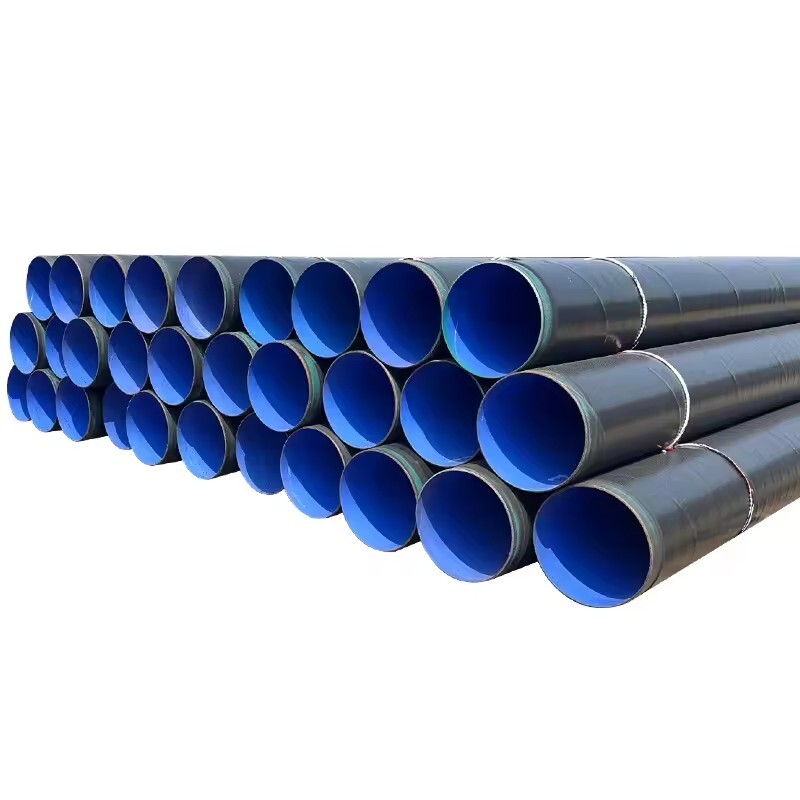

3PE anti-corrosion pipe three-layer PE anti-corrosion structure

First layer: Epoxy powder (FBE> 100um)

Second layer: Adhesive (AD) 170~250um.

Third layer: polyethylene (PE) 2.5~3.7mm.

The three materials are integrated and firmly combined with the steel pipe to form an excellent anti-corrosion layer. The pipe diameter range is ¢60~¢2820, and the wall thickness range is between 2.5-18mm. This is a relatively good anti-corrosion method. It can generally increase the service life of 50 years. It not only extends the replacement cycle of underground pipeline equipment, but also greatly saves cost, providing a powerful role in national construction!

3PE anti-corrosion steel pipe base materials include seamless steel pipes, spiral steel pipes and straight seam steel pipes. The three-layer polyethylene (3PE) anti-corrosion coating has been widely used in the water supply, natural gas and oil pipeline industries due to its good corrosion resistance, water vapor permeability resistance and mechanical properties.
